High efficiency and energy saving MS, MC series vertical multistage centrifugal pump
MS-MC Vertical Multistage Centrifugal Pump_compressed.pdf
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description & Parameters

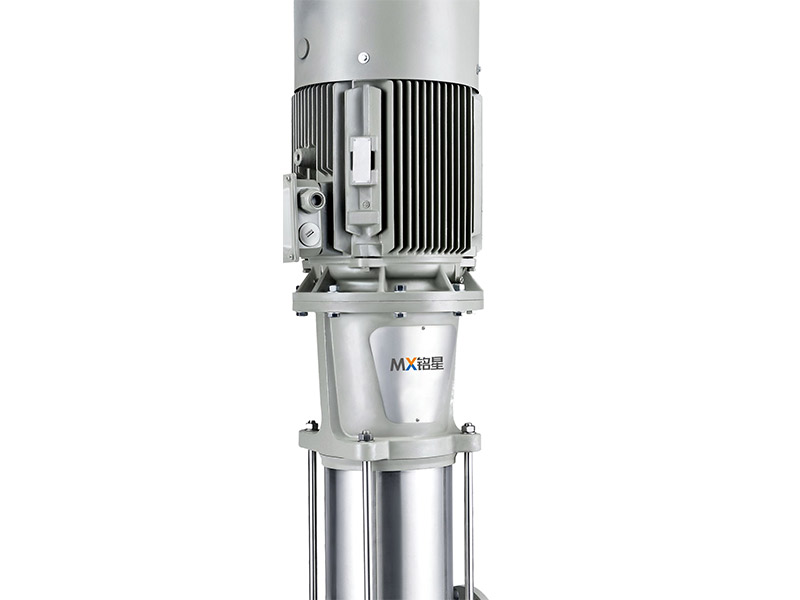

MS, MC is a high-efficiency and energy-saving vertical multi-stage centrifugal pump. The centrifugal force generated by the impeller of the rotary pump drives the rotation of the fluid to complete the liquid transportation. It is mainly composed of a main shaft, an impeller, a guide vane, a pump casing and a mechanical seal. The pump body and the motor are connected.

MS, MC series can be used alone as booster pump, and can also be used with booster equipment to be used in booster systems in construction and industry. In the pipeline system, this design makes the structure of the pump and the pipeline more compact.

MS, MC series vertical multistage centrifugal pumps can be installed vertically or horizontally on the pipeline according to the different installation space on site. In the case of horizontal installation, the pump needs to add a fixed module to ensure the stability of the pump during operation.



How to connect the pump

  • Flange connection
  • Threaded connection
  • Clamp connection
  • Oval flange connection



Pump material

  • cast iron
  • Stainless steel (AISI304, AISI316)
  • Duplex Stainless Steel (2205)



motor

  • Squirrel cage type fully enclosed air-cooled IEC motor, suitable for continuous duty operation
  • Protection level: IP55
  • Insulation class: F
  • Standard voltage: 3x220-240/380-415V

1x220-240V

  • Single-phase motors are available from 0.37kW-2.2kW.



Pump liquid temperature

  • Normal temperature pump: liquid temperature -15 ℃ to +70 ℃
  • Hot water type pump: liquid temperature -15 ℃ to +105 ℃



performance curve

  • All curves are based on motor measurements at a constant speed of 2900rpm or 2950rpm.
  • The curve tolerance conforms to ISO9906.
  • The test adopts water without air at 20℃, and the kinematic viscosity is 1mm²/s.
  • The use of the pump refers to the performance range of the thick line to prevent overheating due to too small flow or overloading of the motor due to excessive flow.



Pump operating conditions

  • Thin, clean, non-flammable and explosive liquids that do not contain particles or fibers

(For details, please refer to the liquid delivery instructions on the last page of the sample)

  • Ambient temperature: no more than +40 ℃
  • Altitude: no more than 1000m



Altitude and ambient temperature

  • When the pump runs when the ambient temperature is higher than 40℃ or the altitude is higher than 1000m, the output power P2 of the motor will decrease.

big.



Performance range

Product Acessories

Maximum operating pressure

Connection method





Model

Flange connection, threaded connection, clamp connection

Oval flange connection

Maximum allowable operating pressure (bar)

Maximum allowable operating pressure (bar)

MS,MC1

33

16

MS,MC2

33

16

MS,MC3

30

16

MS,MC4

33

16

MS,MC5

32

16

MS,MC8

33

16

MS,MC10

34

16

MS,MC12

32

16

MS,MC15

31

16

MS,MC16

29

16

MS,MC20

25

16

MS,MC32-10-1 ～ 32-70

16

/

MS,MC32-80-2 ～ 32-120

26

/

MS,MC32-160-2～   32-170

37

/

MS,MC45-10-1 ～ 45-60

16

/

MS,MC45-70-2 ～ 45-90

24

/

MS,MC45-100-2～   45-140-2

37

/

MS,MC64-10-1 ～ 64-50

15

/

MS,MC64-60-2 ～ 64-80

25

/

MS,MC90-10-1～   90-50-2

15

/

MS,MC90-50～ 90-70-2

22

/

MS,MC100

31

/

MS,MC130

34

/

MS,MC160

28

/

MS,MC190

36

/



The main parameters

MS/MC1

MS/MC2

MS/MC3

MS/MC4

MS/MC5

MS/MC8

MS/MC10

MS/MC12

MS/MC15

MS/MC16

MS/MC20

Limited Data[m³/h]

1

2

3

4

5

8

10

12

15

16

20

Limited Data[l/s]

0. 28

0.56

0. 83

1.1

1.39

2.2

2. 78

3.3

4. 17

4.4

5.6

Flow range[m³/h]

0. 4~2.4

1~3.5

1.2~4

1.5~6

2. 5~8. 5

5~12

5~13

7~16

8~23

8~22

10 ~28

Flow range[l/s]

0.11 ~0.66

0.28~0.97

0. 33~1.1

0.42~1.63

0.69~2. 36

1.39~3.3

1. 39~3. 61

1.9~4.4

2.22~6.39

2.2~6.1

2.8~7.8

Greatest pressure[bar]

33

33

30

33

32

33

34

32

31

29

25

Motor Power[kW]

0. 37~3

0. 37~5.5

0. 37~5.5

0. 55~7.5

0.37~7. 5

0.75~15

0.75~15

1.5~18.5

1. 1~22

2.2~22

1.1~22

Temperature range[℃]

-15~105

Highest efficiency[%]

48

52

57

57

66

62

68

63

68

66

68

Ms plumbing connection

DIN flange

DN25

DN25

DN25

DN32

DN32

DN40

DN40

DN50

DN50

DN50

DN50

Pipe thread

R11 1'’

4

R11 1'’

4

R11 1'’

4

R11 1'’

4

R11 1'’

4

R12'’

R12'’

R12'’

R12'’

R12'’

R12'’

Ferrule joint

DN32

DN32

DN32

DN32

DN32

DN50

DN50

DN50

DN50

DN50

DN50

Mc line connection

DIN flange

DN25

DN25

DN25

DN32

DN32

DN40

DN40

DN50

DN50

DN50

DN50

Waist flange

Rp1

Rp1

Rp1

Rp1 1

4

Rp1 1

4

Rp1 1

2

Rp1 1

2

Rp1 1

2

Rp1 1

2

Rp1 1

2

Rp1 1

2



The main parameters

MS/MC32

MS/MC45

MS/MC64

MS/MC90

MS/MC100

MS/MC130

MS/MC160

MS/MC190

Limited Data[m³ /h]

32

45

64

90

100

130

160

190

Limited Data[l/s]

8.9

12.5

17.8

25

27. 78

36. 11

44.44

52. 78

Flow range[m³ /h]

16 ~42

25 ~55

30 ~80

50 ~110

50 ~125

60 ~160

80~200

90 ~240

Flow range[l/s]

4. 4~11

6. 9~15.3

8~22

14 ~30

14~34. 7

16. 7~44. 4

22. 2~55.6

25~66. 7

Greatest pressure[bar]

37

37

25

22

31

34

28

36

Motor Power[kW]

2. 2~45

4~55

4~55

7.5~55

5. 5~75

11 ~110

11 ~110

18. 5~200

Temperature range[℃]

-15~105

Highest efficiency[%]

75

75

75

76

79

80

80

80

Pipe connection

DIN flange

DN65

DN80

DN100

DN100

DN100

DN150

DN150

DN200
