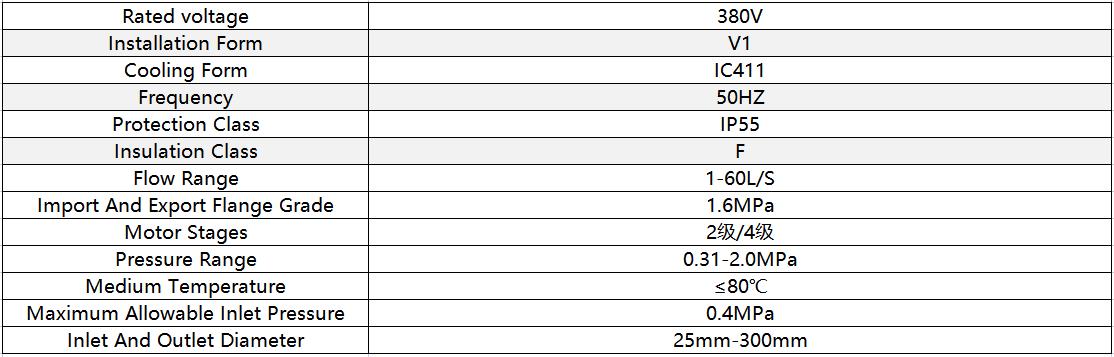

Connection mode:

◎ Flange connection

◎ Threaded connection

◎ Clamp connection

◎ Oval flange connection

Material:

When cast iron

◎ Stainless steel (AISI304, AISI316)

◎ Duplex stainless steel (2205)

Life motor:

◎ Squirrel cage type fully enclosed air cooled IEC motor, suitable for continuous operation.

◎ Protection grade: IP55

◎ Insulation grade: F

◎ Standard voltage: 3x220-240/380-415V

1x220-240V

◎ Single phase motor is available from 0.37KW to 2.2KW.

Liquid temperature:

◎ Normal temperature pump: liquid temperature -15℃ to +70℃

◎ Hot water pump: liquid temperature -15℃ to +105℃

Performance curve:

◎ All curves are based on motor measurements at constant speed 2900RPM or 2950rpm.

◎ Curve tolerance conforms to ISO9906.

◎ The test adopts water without air at 20℃, the kinematic viscosity is 1mm²/s.

◎ The use of pump with reference to the performance range of thick line, in case the flow is too small to produce overheating or excessive flow ambassador motor overload.

Operating conditions:

◎ Thin, clean, non-flammable and explosive liquid with no particles or fibers (see instructions for conveying liquid at the end of sample page for details).

Ambient temperature: no more than +40℃

◎ Altitude: not more than 1000m

Altitude and ambient temperature:

◎ When the pump is operated at ambient temperature greater than 40℃ or altitude greater than 1000m, the motor output power P2 will be reduced.

Pump in the above case, the motor power needs to be large.

Product features:

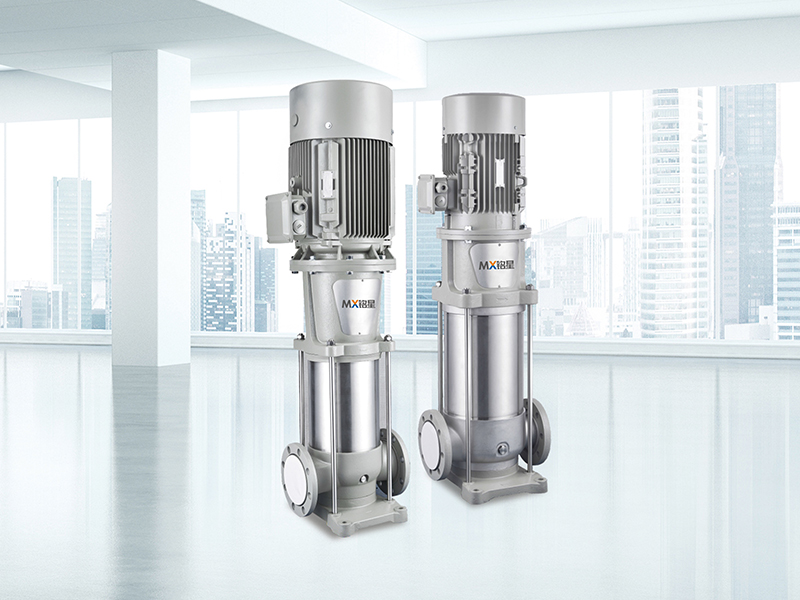

◎ MS, MC is a vertical multi-stage centrifugal pump with high efficiency and energy saving, which is mainly composed of the pump body and motor connected by the spindle, impeller, guide vane, pump shell and mechanical seal, through the centrifugal force generated by the impeller of the rotating pump to drive the fluid rotation.

◎ MS, MC series as a booster pump can be used alone, can also be used with a set of booster equipment in the building and industrial booster system, the pipeline structure can ensure that the pump directly installed in the same horizontal line and pipe diameter of the same horizontal pipeline system, this design makes the pump structure and pipeline more compact.

◎ MS, MC series vertical multistage centrifugal pump can be installed vertically or horizontally on the pipeline according to the different installation space on site. In the case of horizontal installation, the pump needs to add a fixed module to ensure the smooth operation of the pump.

MS, MC is a high-efficiency and energy-saving vertical multi-stage centrifugal pump. The centrifugal force generated by the impeller of the rotary pump drives the rotation of the fluid to complete the liquid transportation. It is mainly composed of a main shaft, an impeller, a guide vane, a pump casing and a mechanical seal. The pump body and the motor are connected.

MS, MC series can be used alone as booster pump, and can also be used with booster equipment to be used in booster systems in construction and industry. In the pipeline system, this design makes the structure of the pump and the pipeline more compact.

MS, MC series vertical multistage centrifugal pumps can be installed vertically or horizontally on the pipeline according to the different installation space on site. In the case of horizontal installation, the pump needs to add a fixed module to ensure the stability of the pump during operation.

How to connect the pump

• Flange connection
• Threaded connection
• Clamp connection
• Oval flange connection

Pump material

• cast iron
• Stainless steel (AISI304, AISI316)
• Duplex Stainless Steel (2205)

motor

• Squirrel cage type fully enclosed air-cooled IEC motor, suitable for continuous duty operation
• Protection level: IP55
• Insulation class: F
• Standard voltage: 3x220-240/380-415V

1x220-240V

• Single-phase motors are available from 0.37kW-2.2kW.

Pump liquid temperature

• Normal temperature pump: liquid temperature -15 ℃ to +70 ℃
• Hot water type pump: liquid temperature -15 ℃ to +105 ℃

performance curve

• All curves are based on motor measurements at a constant speed of 2900rpm or 2950rpm.
• The curve tolerance conforms to ISO9906.
• The test adopts water without air at 20℃, and the kinematic viscosity is 1mm²/s.
• The use of the pump refers to the performance range of the thick line to prevent overheating due to too small flow or overloading of the motor due to excessive flow.

Pump operating conditions

• Thin, clean, non-flammable and explosive liquids that do not contain particles or fibers

(For details, please refer to the liquid delivery instructions on the last page of the sample)

• Ambient temperature: no more than +40 ℃
• Altitude: no more than 1000m

Altitude and ambient temperature

• When the pump runs when the ambient temperature is higher than 40℃ or the altitude is higher than 1000m, the output power P2 of the motor will decrease.

big.

Performance range

Maximum operating pressure
