Arc Rib Assembly Bolted Type Sectional Water Tanks: Design, Benefits, and Installation

Understanding Arc Rib Assembly Bolted Type Sectional Water Tanks

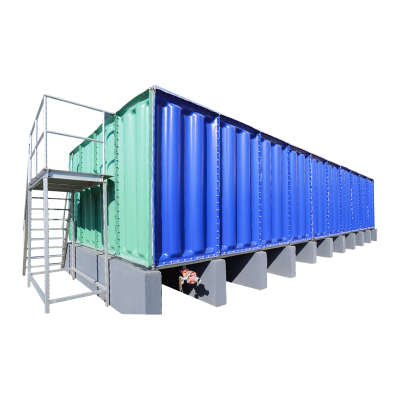

The arc rib assembly bolted type sectional water tank represents a modern solution for large-scale water storage needs. These tanks are constructed using curved steel panels (arc ribs) that are bolted together to form a sturdy, leak-proof structure. Unlike traditional welded tanks, the bolted assembly allows for easier installation, maintenance, and relocation if needed.

Key Components of the Design

The tank consists of several essential components that work together to create a durable water storage system:

• Arc-shaped steel ribs that provide structural support
• High-grade steel panels with protective coatings
• Specialized bolting system for secure assembly
• Sealing gaskets to prevent leakage
• Modular sections that allow for customizable sizes

How It Differs From Conventional Water Tanks

When comparing arc rib assembly bolted type sectional water tanks to traditional options, several key differences emerge:

Best practices for installing bolted sectional water tanks

Proper installation is crucial for the long-term performance of arc rib assembly bolted type sectional water tanks. Following industry best practices ensures structural integrity and prevents potential issues.

Site Preparation Requirements

Before installation begins, the site must be properly prepared:

• Level and compact the foundation area
• Ensure proper drainage around the tank perimeter
• Verify soil bearing capacity meets requirements
• Clear adequate space for assembly equipment
• Mark all underground utilities to avoid damage

Step-by-Step Assembly Process

The assembly of bolted sectional water tanks follows a precise sequence:

1. Lay and secure the base plates according to design
2. Assemble the bottom ring of panels
3. Install vertical ribs and connect to base
4. Add subsequent panel layers with proper sealing
5. Complete the roof structure if applicable
6. Install all necessary fittings and accessories

Advantages of modular arc rib water storage systems

The modular arc rib water storage systems offer numerous benefits compared to conventional water tanks, making them increasingly popular for various applications.

Structural Benefits

The unique arc rib design provides exceptional structural advantages:

• Superior resistance to external forces like wind and seismic activity
• Even distribution of water pressure across all panels
• Reduced stress concentrations at connection points
• Ability to withstand extreme weather conditions
• Longer lifespan due to optimized load distribution

Operational Advantages

From a functional perspective, these systems excel in several areas:

Cost comparison of arc rib vs. traditional water tanks

When evaluating water storage solutions, understanding the complete cost picture is essential. The arc rib assembly bolted type sectional water tank often proves more economical over time despite potentially higher initial costs.

Initial Investment Analysis

The upfront costs for different tank types vary based on several factors:

• Material costs for steel panels versus concrete or other materials
• Transportation expenses for prefabricated sections
• Site preparation requirements
• Labor costs for specialized installation
• Engineering and design fees

Long-Term Cost Considerations

The true value of arc rib water tanks becomes apparent when examining long-term costs:

Maintenance tips for bolted type sectional water tanks

Proper maintenance ensures the longevity and optimal performance of your arc rib assembly bolted type sectional water tank. Following these guidelines will help prevent common issues and extend the tank's service life.

Routine Inspection Procedures

Regular inspections should include:

• Visual examination of all bolted connections
• Checking for signs of corrosion or coating damage
• Inspecting seals and gaskets for wear
• Verifying structural integrity after extreme weather
• Monitoring for any leaks or moisture accumulation

Preventive Maintenance Schedule

A comprehensive maintenance program for bolted type sectional water tanks should include:
