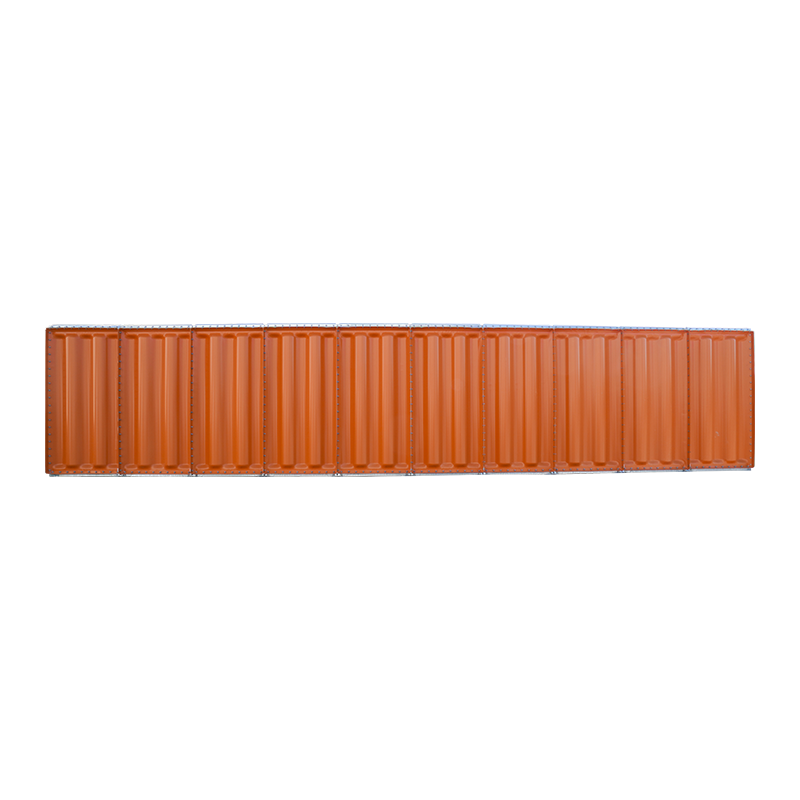

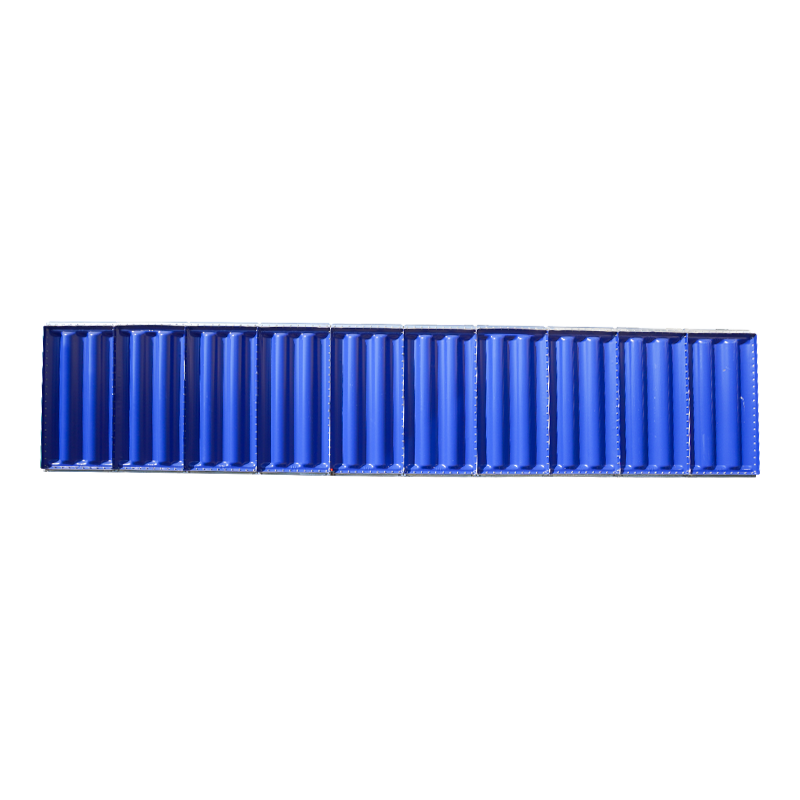

The inner and outer sides of the plate body have a two-way arc rib (corrugated) structure. The two-way arc rib (corrugated) structure is provided with arc-shaped grooves and arc-shaped protrusions at intervals along the length direction of the plate body. The arc-shaped grooves and arcs are arranged at intervals. The shaped protrusions are arranged continuously and smoothly transition to each other. The vertical distance between the line connecting the lowest point of the arc-shaped groove and the line connecting the highest point of the arc-shaped protrusion is 30~90mm, generally 55mm. By setting up a bidirectional arc rib (corrugated) structure, this module can reduce the concentrated impact and dissipation of pressure inside the water tank, making the module stiffer and more resistant to deformation, thereby increasing the service life of the water tank or pump room structure. and stability.
Inquiry
Product Description
Technical parameters:
Plate size: 1m*1m/1m*2m/1m*2.5m/1m*3.15m;
Plate thickness: 1.5, 2.0, 2.5, 3.0, 4.0mm;

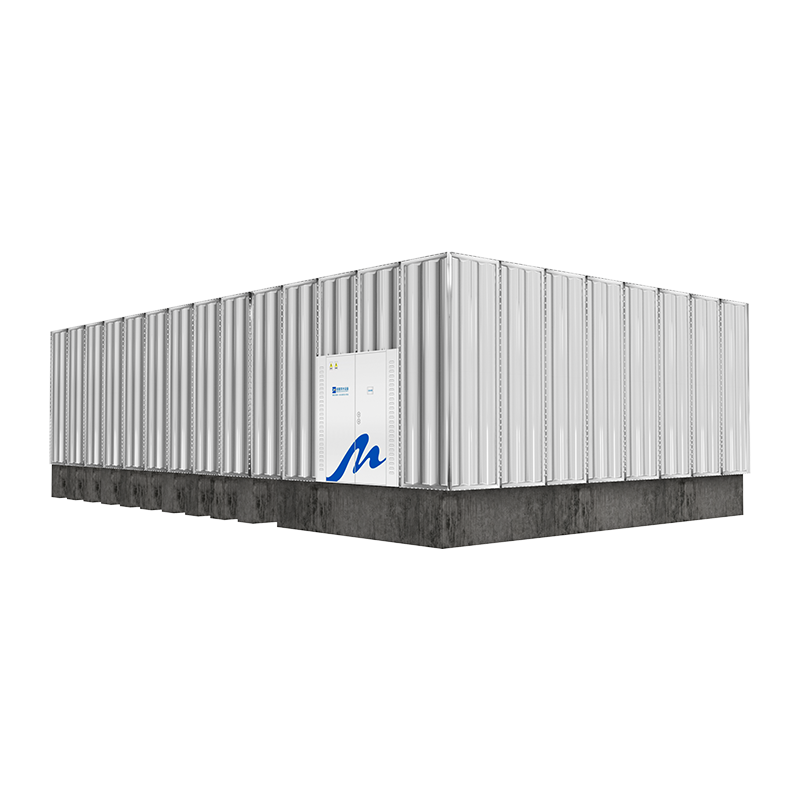

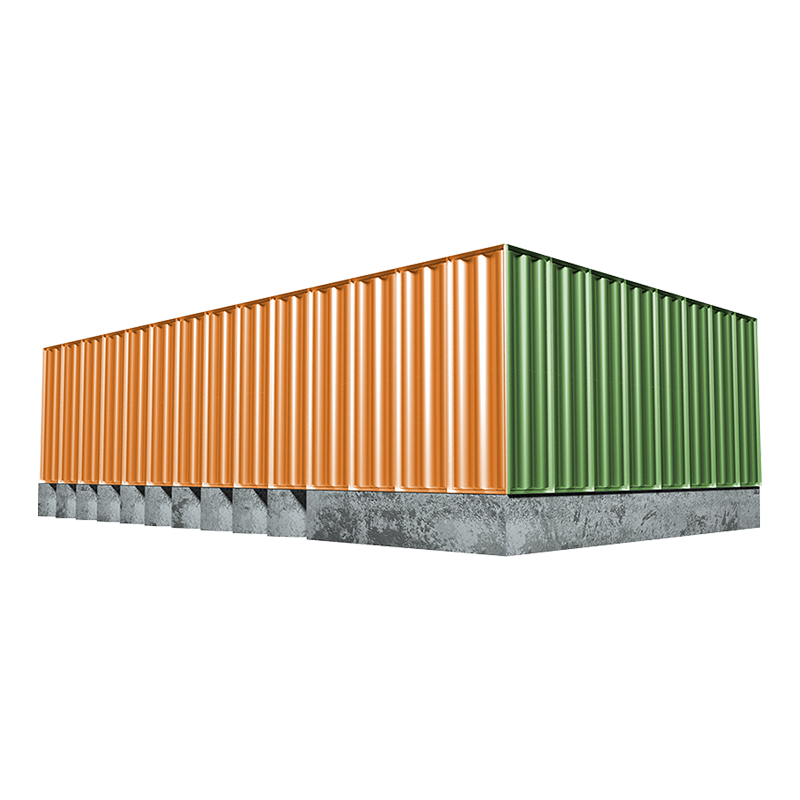

SW--Ⅰ type large module water tank: a water tank assembled on one side by a module made of SUS304-2B stainless steel plate and hot-dip galvanized plate, which are molded and stretched at one time with metal glue;

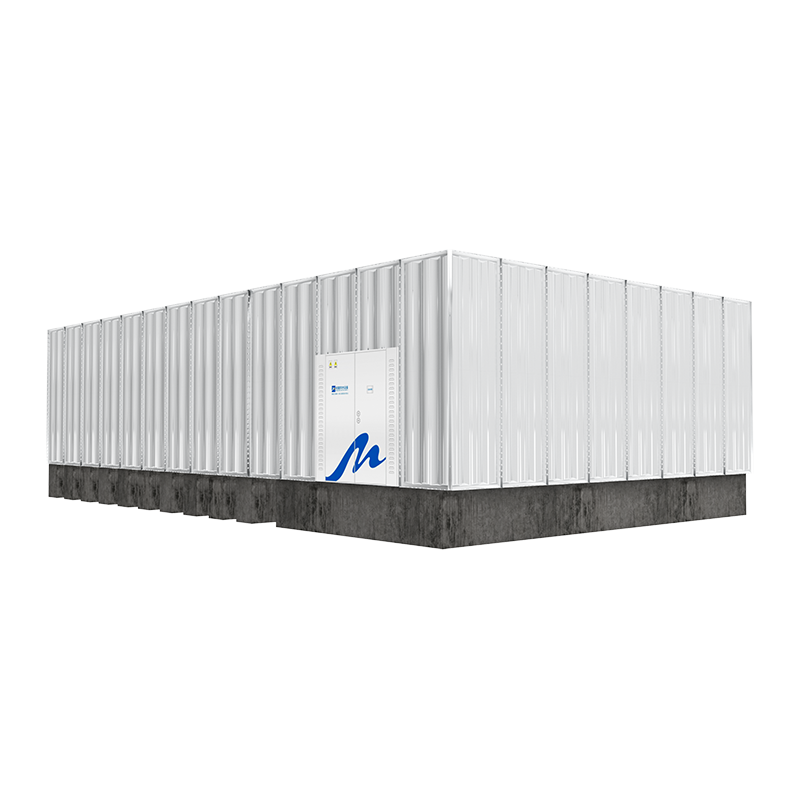

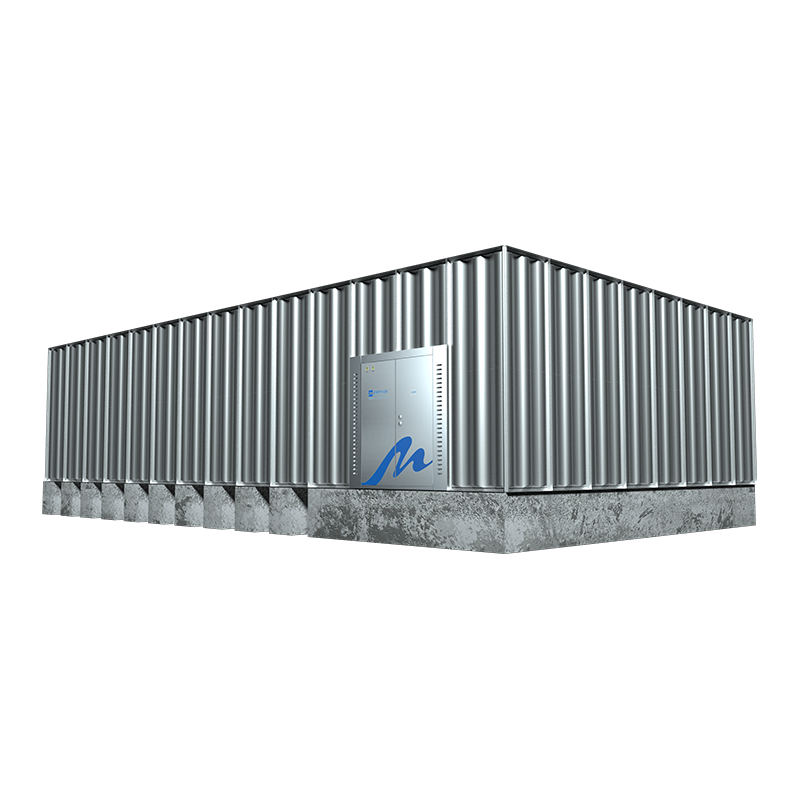

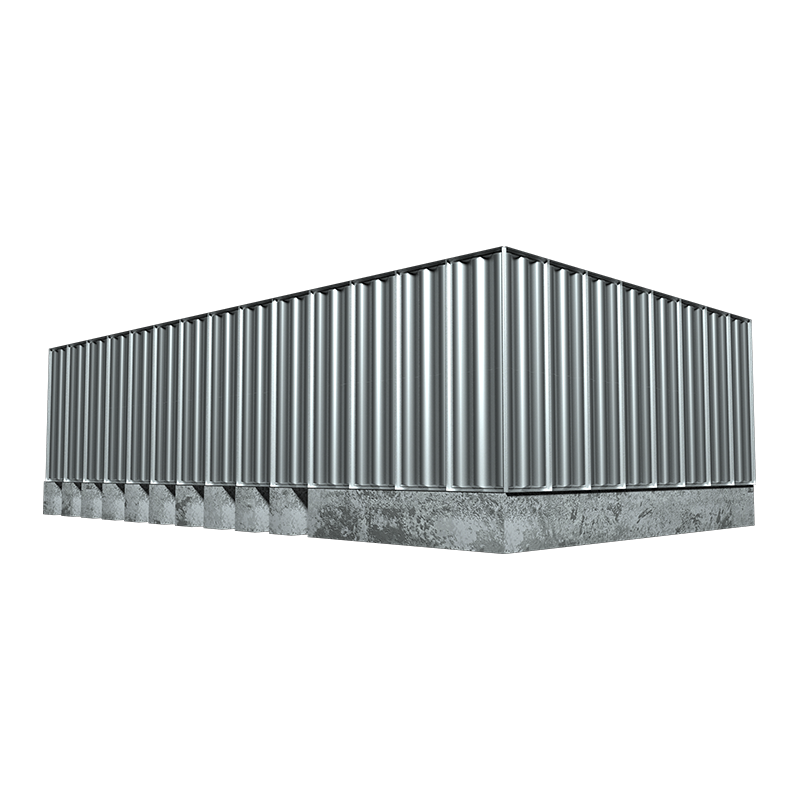

SW--Ⅱ type large module water tank: a water tank assembled on both sides by modules made of SUS304-2B stainless steel plates and hot-dip galvanized plates, which are molded and stretched at one time with metal glue.
Features of Double-Sided Arc Rib Type Water Tank:
1. There is no plane interval between adjacent arc-shaped grooves and arc-shaped protrusions;
2. The adjacent arc-shaped grooves and arc-shaped protrusions are designed to be centrally symmetrical; the angle between the folded edge and the plate body is 135°; the thickness of the module is 1.8~5mm; the length is 800~4800mm;
3. The ultra-stiff two-way corrugated module is prepared by one-time metal stamping and stretching of a specific mold;
4. The material of the module is made of stainless steel, carbon steel, hot-dip galvanized material, stainless steel, and hot-dip galvanized composite material.
Advantages of super stiff two-way arc rib water tank:
1. High stiffness: The plate is molded into a double-sided arc rib shape, and the stiffness is more than three times higher than that of traditional large module plates;
2. No tie bars: subverting the traditional internal structure of the water tank and realizing no horizontal tie bars in the water tank;
3. Easy to clean: The internal structure of the water tank is simple, which greatly reduces the difficulty of cleaning;
4. No water accumulation: The innovative outer drum plates of the top and bottom plates of the above-ground water tank have no water accumulation at the bottom and bottom, and no dead corners.

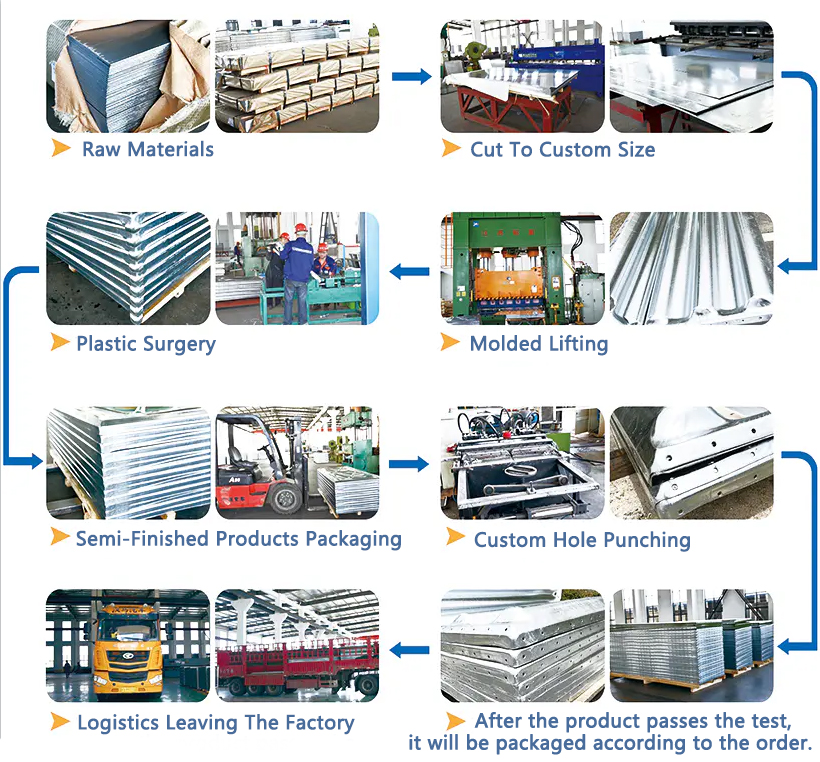

Production process:

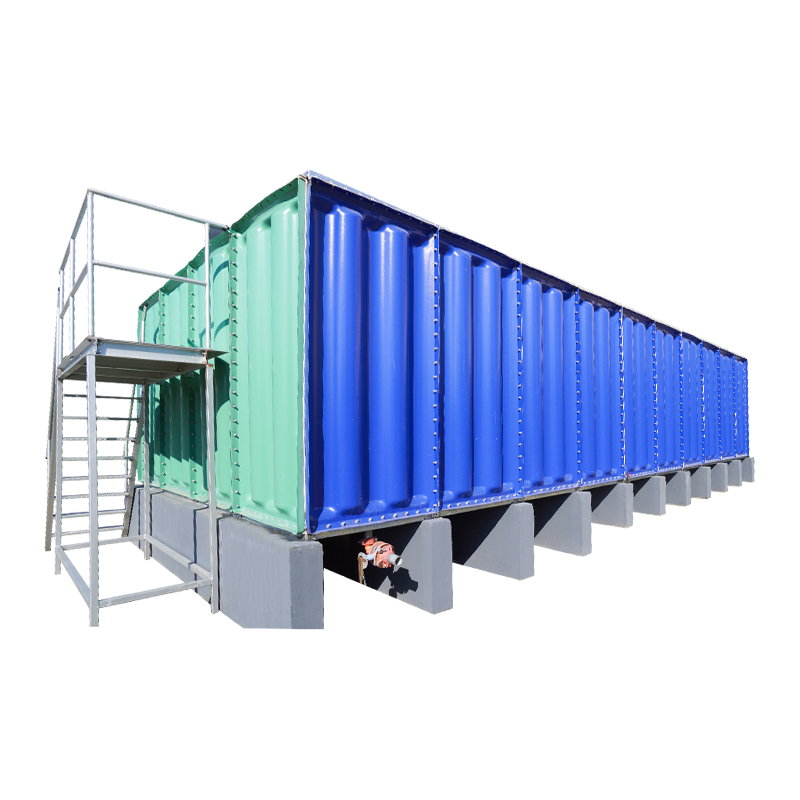

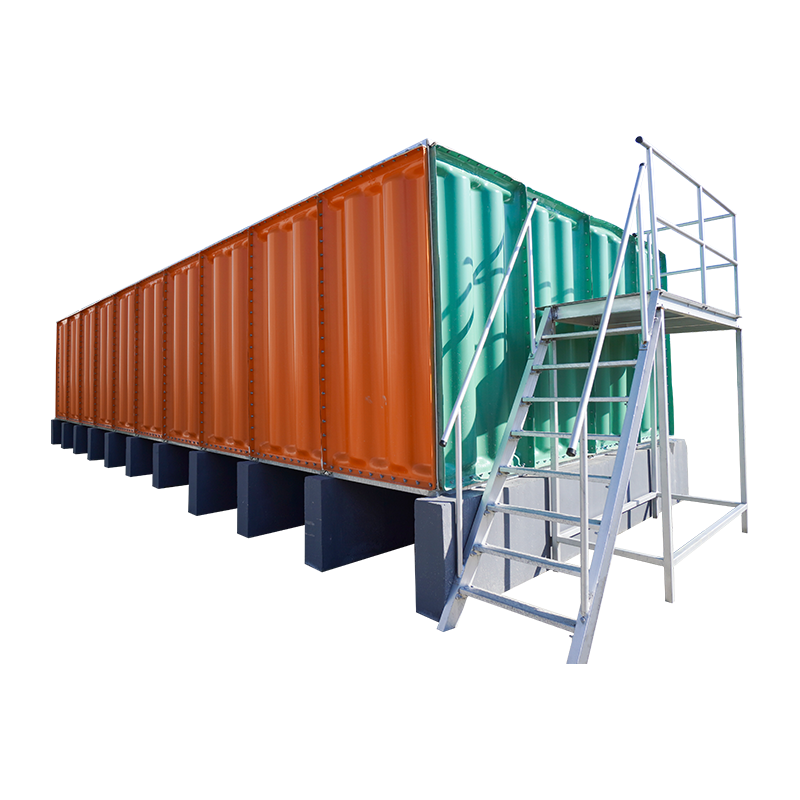

Construction Cases
Contact Us for More Details
Don't hesitate to contact when you need us!
