Steel Sectional Tanks: Design, Installation, Compliance, and Long-Term Performance

Modular Systems Explained: Why a modular steel sectional water tank Delivers Flexibility and Speed

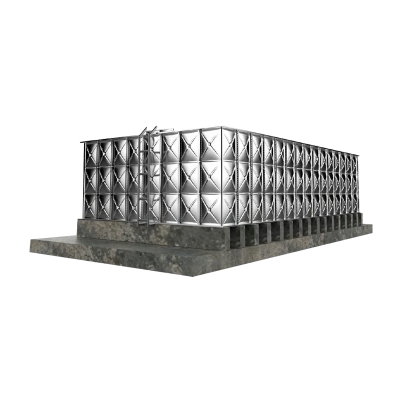

A modular steel sectional water tank is built from prefabricated steel panels, structural stiffeners, gaskets, and bolted joints that assemble on site to form a robust, watertight reservoir. Instead of transporting one massive vessel, contractors ship stacked panels that pass through tight gates, elevators, alleys, or rooftops, and then construct the tank in spaces where a monolithic container would be impossible to maneuver. This approach minimizes heavy lifting equipment, shortens mobilization time, and allows capacity to scale simply by adding more courses of panels or expanding the plan footprint. In dense facilities, hospitals, data centers, and remote locations with limited crane access, the modular concept is often the only realistic path to reliable storage. Because panels repeat, replacement is straightforward; a damaged wall or roof panel can be isolated and swapped without demolishing the entire structure, which reduces lifecycle cost and downtime. Crucially, the gasketing and bolt pattern are engineered to distribute loads uniformly, resisting hydrostatic pressure while maintaining seal compression over years of service, even through thermal cycling and minor settlement that would challenge welded constructions.

How the Panels, Gaskets, and Frames Work Together

Each panel typically includes punched holes on a precise grid to accept bolts and sealant. When fastened against elastomeric gaskets, the clamping force creates a continuous compression seal along every joint. Corner angles and vertical stiffeners transfer loads into a ring beam or slab, preventing local buckling while keeping tolerances tight. Roof systems—either flat or low-slope—use trusses or purlins to manage wind and access loads. This integration of repeatable parts accelerates training for field crews, lowers error rates, and lets owners standardize spare parts across multiple facilities. Because a modular steel sectional water tank is inherently panelized, design variations like internal liners, insulation, or baffles can be added without reworking the entire structure.

Where Modular Sectional Tanks Outperform Alternatives

Compared with welded steel, modular units avoid hot work permits and on-site coating cure schedules; compared with concrete, they weigh less, go together faster, and reach design capacity without long curing delays; compared with molded plastics, they offer superior fire resistance, dimensional stability, and capacity at scale. When projects face seismic demands, panels can be upgraded with thicker gauges, denser bolt patterns, and base anchors to meet site-specific spectra. Where water quality is sensitive, panel coatings and gasket materials are selected for compatibility with disinfectants such as chlorine or chloramine so that the tank resists pitting, underfilm corrosion, and microbial harboring.

At-a-Glance Comparison

In practical terms, decision makers often compare modular sectional tanks to other common storage options. The key differences are summarized in sentences and the table below: modular sectional tanks assemble quickly with little heavy equipment, concrete tanks offer thermal mass but require long curing and larger site footprints, welded steel provides a monolithic shell but needs controlled on-site coating conditions, and molded polyethylene is economical at small volumes yet limited in fire resistance and long-term stiffness.

Fire Readiness: Configuring a bolted steel sectional tank for fire protection

A bolted steel sectional tank for fire protection balances storage volume, refill rate, and discharge hardware to satisfy fire flow and duration requirements. In many jurisdictions, fire suppression systems must demonstrate a target flow (for example, to support hydrants or sprinklers) sustained for a specified duration. That drives the tank’s effective capacity after deducting unusable volume below suction, maintenance reserves, and thermal expansion allowances. Unlike general-purpose storage, fire tanks integrate large-diameter outlets, dedicated draft connections, anti-vortex plates, and supervised valves so that water is always ready without accidental closure or contamination. Because fire events are rare but high-consequence, the design emphasizes reliability features—dual level sensors, tamper-resistant hatches, and frost protection—over marginal cost savings, and these decisions should be recorded in the owner’s life-safety documentation to streamline inspections.

Hydraulic Interfaces and Appurtenances

Fire pumps call for low-loss suction; therefore, designers prefer bottom outlets with smooth bends, generous diameters, and strainers. Overflows must pass full pump flow without pressurizing the roof, while vents keep the tank from drawing vacuum during rapid discharge. For climates with freeze potential, submerged inlets and insulated roof hatches prevent icing; in hot climates, UV-resistant roof covers and reflective finishes help manage heat gain that can exacerbate biological growth during long standby periods. A bolted steel sectional tank for fire protection often sits near access roads so engines can draft directly if the pump fails. Clear signage, lockable but supervised valves, and well-lit perimeters convert the tank from a passive asset into a dependable component of the response plan.

Comparison: Fire vs. Potable vs. Process Storage

While all three store water, their priorities differ: fire tanks favor guaranteed instantaneous flow and robust fittings; potable tanks prioritize sanitary design and water quality preservation; process tanks prioritize compatibility with chemicals and temperature. The table below complements these statements by listing the common design differences.

Material Choices: When a galvanized sectional water storage tank Is the Right Fit

The galvanized sectional water storage tank uses zinc-coated steel panels to resist corrosion economically. Galvanizing creates a sacrificial layer that protects exposed steel at scratches and cut edges, enabling durable service in many atmospheres with modest maintenance. For raw water, irrigation, or process makeup lines, galvanizing delivers a strong balance of upfront price and longevity. That said, water chemistry matters: high chlorides, very low pH, or elevated temperatures can accelerate zinc consumption and undercut the protective layer. In those cases, designers evaluate alternative systems such as epoxy-coated panels, glass-fused-to-steel enamel, or stainless steel. The most appropriate choice weighs total cost of ownership, including downtime risk, inspection access, coating repairability, and the site’s environmental aggressiveness (marine spray, de-icing salts, industrial fumes).

Coatings, Liners, and Gasket Compatibility

Regardless of panel finish, gasketing must match both the stored water and disinfectants. Elastomers like EPDM or nitrile are common, with potable-grade variants for drinking water service. Internal liners—flexible membranes suspended from the roof or attached to walls—can isolate the stored water from the steel, essentially making the panel system act as a structural shell while the liner provides the primary barrier. For a galvanized sectional water storage tank, a liner can extend service life in aggressive waters while simplifying future panel maintenance because the liner can be patched or replaced without removing the shell. Fastener selection follows suit: zinc-plated or hot-dip galvanized bolts pair with galvanized panels, while epoxy systems may use coated or stainless hardware to avoid galvanic mismatch at wet joints.

Material System Comparison

Choosing between galvanized, epoxy-coated, glass-fused-to-steel, and stainless panels often turns on a few practical questions: what is the expected disinfectant residual, how often will the tank be cycled, and how critical is cosmetic appearance over decades? The table below complements the narrative by offering a structured comparison.

Quality & Safety: Meeting potable water steel sectional tank standards

Designing for human consumption places water quality protection at the center of every decision. To align with potable water steel sectional tank standards, components that contact water—panel coatings, gaskets, sealants, and liners—must be certified for drinking water use. Vents, overflows, and roof hatches require insect and bird screens to block contamination; roof joints need drip-tight construction to prevent airborne dust and rain intrusion. Interior geometry should avoid dead zones where flow stagnates, because low turnover can encourage biofilm and disinfectant decay. Smooth, cleanable surfaces, accessible manways, and safe fall-arrest anchor points all support effective inspection and maintenance programs. Disinfection procedures—whether using free chlorine, chloramine, or alternative methods—must be validated and documented before the tank is returned to service, and sampling taps should be located where they represent actual water quality, not just a sheltered corner of the shell.

Turnover, Mixing, and Thermal Control

Even a well-coated tank can experience quality drift if water sits motionless. Designers mitigate this by controlling inlet/outlet placement to promote sweeping flow paths, by adding baffles or passive mixers to interrupt stratification, and by specifying periodic cycling so that stored water is refreshed on a predictable cadence. In hot climates, insulation or reflective roof panels can limit thermal gradients; in cold climates, buried piping and heat tracing can prevent freezing at appurtenances. Aligning these features with potable water steel sectional tank standards ensures the structure is not only safe on paper but resilient in daily operation.

Sanitary Detailing Checklist

• Screened, downturned vents sized for both inflow and outflow.
• Overflow with splash pad and rodent-proof termination.
• Gasket formulations verified for disinfectant contact.
• Roof access with raised curbs and lockable, gasketed covers.
• Drain and scour connections positioned for full floor sweep-out.
• Fine-mesh hatch screens for insect exclusion during ventilation.
• Sampling ports at representatively mixed locations.

Field Execution: A Practical steel sectional tank installation guide from Groundwork to Commissioning

The most reliable tanks start with disciplined site preparation and finish with documented commissioning. This steel sectional tank installation guide follows a proven path: establish a stable foundation, assemble panels square and plumb, apply even gasket compression, protect coatings during handling, and verify leaks with hydrostatic testing before placing the tank into service. Each step benefits from checklists, calibrated tools, and photographic records that make later audits simple and transparent. Supervisors should verify that elevation benchmarks and anchor locations match the approved drawings; small layout errors can compound as panel courses climb, leading to roof fit problems or misaligned nozzles that are costly to correct late in the build.

Foundation and Anchoring

Foundations typically take the form of a reinforced slab, ring beam, or compacted plinths, sized for combined loads from water, wind, seismic forces, and live loads during maintenance. Anchor bolts should be set with templates to maintain position and perpendicularity. Flatness tolerances matter: an uneven base twists panel joints, causing inconsistent gasket compression and future seepage. Where soils are expansive or weak, geotechnical improvements—over-excavation, grouted piers, or geogrid—deliver long-term stability. Drainage grading keeps stormwater away from the base to limit corrosion and freeze-thaw damage.

Panel Handling and Assembly

Panels arrive bundled; keep them on dunnage and lift with spreader bars to avoid bending. During assembly, crews finger-tighten bolts to align holes, then torque to specification in a star pattern so gaskets compress uniformly. Sealant squeeze-out should be even along seams, signaling continuous contact without crushing. Corners and roof joints deserve special attention because they combine multiple layers of steel; misalignment here can telegraph through the structure and affect roof sheet fitment. Maintain a clean work surface—grit under gasket lips can create leak paths invisible until the tank is filled.

Hydrotest, Disinfection, and Handover

Hydrostatic testing gradually fills the tank while monitoring for weeping joints. Mark and address any seepage before proceeding. After a tightness pass, drain as needed and disinfect following the approved method. Document disinfectant concentration and contact time, flush to waste, and collect water samples for validation. Only after satisfactory results should the tank be placed in service. Capture as-built drawings, torque logs, coating repair records, and test results in a turnover package that the owner can use for future inspections. A well-organized steel sectional tank installation guide ends with preventive maintenance schedules, spare gasket inventories, and recommended inspection intervals.

Typical Installation Sequence (Narrative and Table)

The narrative sequence emphasizes control at each stage: prepare and verify the foundation; stage panels and hardware by elevation; erect base course and check squareness; add courses with periodic plumb checks; install roof structure; fit appurtenances; perform hydrotest; disinfect; and document. The table below mirrors that sequence for quick reference.

Lifecycle Care: Maintenance Routines That Protect Your Investment

Once commissioned, a steel sectional tank thrives on predictable care. Visual exterior walks catch chipped coatings, loose hardware, or vegetation encroachment before they snowball into structural issues. Interior inspection—performed during controlled dewatering and confined-space procedures—checks for gasket compression continuity, biofilm, pitting, and sediment accumulation. Schedule periodic drain-downs to remove fines that settle on the floor, and coordinate disinfectant management with turnover plans to avoid over- or under-dosing. Spare parts should include a stock of bolts, washers, and potable-grade gasket segments that match the original specification; because a panel system is modular, these components keep repairs swift and consistent. With disciplined records, owners can trend leak observations, torque checks, and coating touch-ups to forecast when more extensive rehabilitation will be cost-effective, thereby extending service life without unpleasant surprises.

Preventive Maintenance Checklist

• Quarterly exterior inspection for coating damage, corrosion, and settlement cracks around foundations.
• Semiannual verification of vent screens, overflow paths, and hatch gaskets.
• Annual torque sampling of representative bolts on each elevation to confirm seal compression.
• Scheduled interior cleanout and sanitary inspection, aligned with water quality sampling.
• Recordkeeping of disinfectant residuals, temperature profiles, and turnover rates.

When owners standardize on a modular steel sectional water tank platform, they can replicate proven details across sites, whether the application is a bolted steel sectional tank for fire protection guarding a warehouse, a galvanized sectional water storage tank supporting irrigation, or a system designed to meet stringent potable water steel sectional tank standards. By following the field-tested steps in this steel sectional tank installation guide, the result is a durable, compliant, and serviceable asset with predictable costs over decades.
