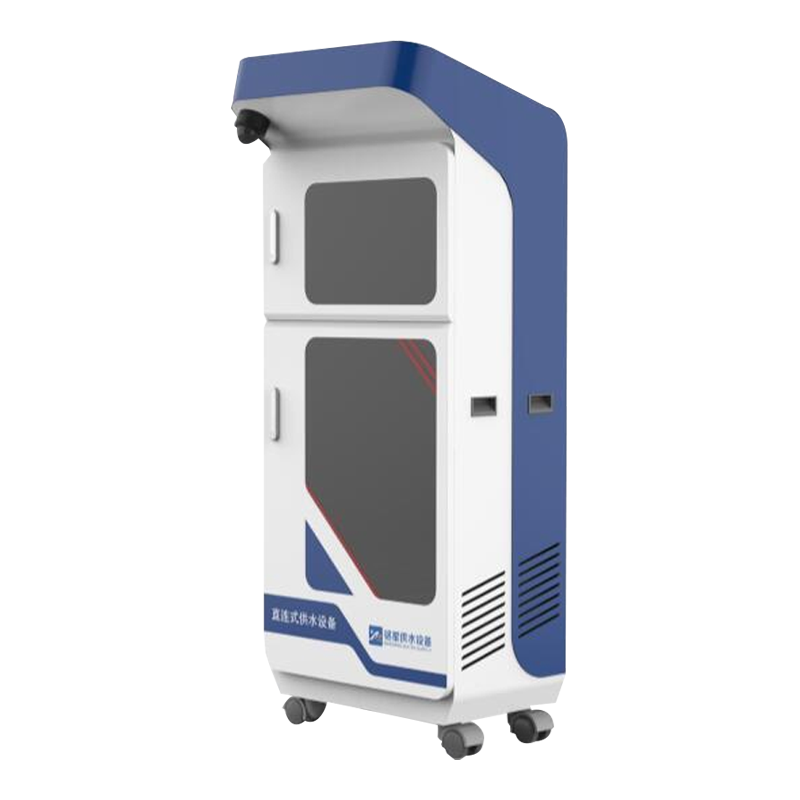

Direct connection water supply equipment is usually composed of outdoor cabinets, water pumps, pressure stabilizing tanks, full frequency conversion control systems, control instruments, pipelines and valves, etc. The equipment adopts a modular design, which is easy to install, occupies a small area and is suitable for use in various complex environments. Made of 304 stainless steel, it features an IP55 protection rating, capable of meeting outdoor requirements for rain protection, heat insulation, and dust prevention. It also supports remote monitoring and intelligent operation and maintenance functions. The water supply flow and pressure can be dynamically adjusted according to the actual water demand, thereby achieving energy-saving effects. Direct-connected water supply equipment, with its features of high efficiency and energy conservation, convenient installation and intelligent management, has become an important innovative product in the water supply industry. Whether it is used for rural water supply renovation, upgrading of old urban residential areas or heating systems in high-rise buildings, it can provide stable and reliable water supply solutions to meet the needs of different scenarios.
Inquiry
Product Description
Flow range |
0-200m ³ /h |
Pressure range |
0-1.0MPa |
Pressure regulation accuracy |
≤0.01MPa |
Ambient temperature |
4℃ to 40℃. If the temperature exceeds this range, corresponding measures must be taken. |
Relative humidity |
No more than 90%(at 20℃), no condensation |
Power supply |
Three-phase five-wire system 380V x(±5%)50Hz±2HZ; |
Three-phase voltage unbalance rate |
≤3% |
Altitude |
Not exceeding 1000m. When it exceeds this limit, the control components must be adjusted accordingly. |
On-site environment |
There should be no conductive or explosive dust at the equipment installation site, and no gases, vapors or other media that corrode metals or damage insulation. |
